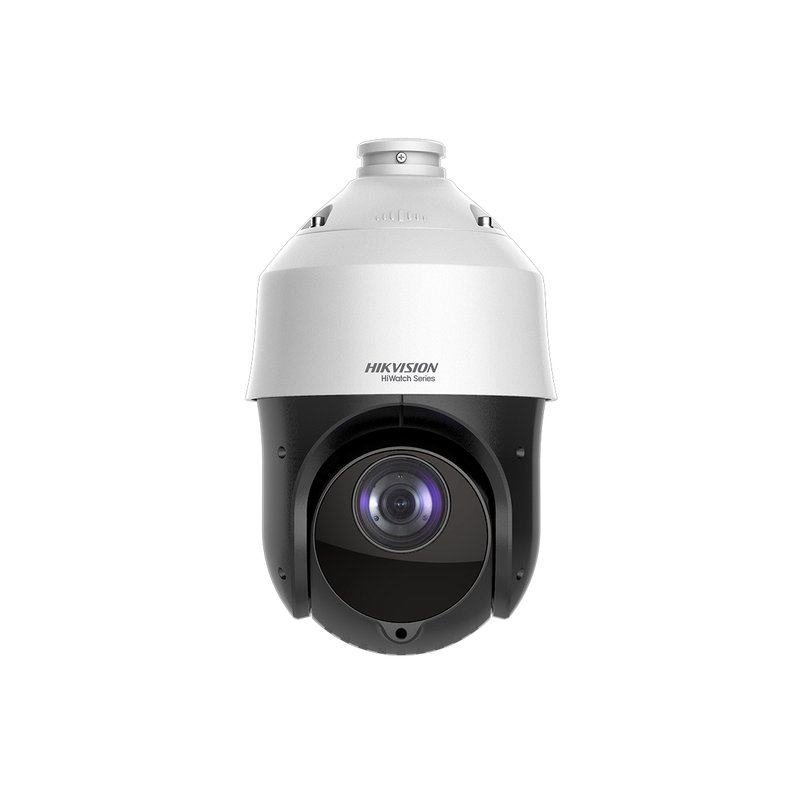

Telecamera PTZ Speed Dome 1080P 2MP Motorizzata 25X Ottica Varifocale 4.8-120mm IP66 HiWatch HWP-T4225I-D
| Camera | |
| Image Sensor | 1/2.8’’ Progressive Scan CMOS |
| Max. Image Resolution | 1920 x 1080 |
| Frame Rate | 50Hz: 25fps @(1920 × 1080) 60Hz: 30fps @(1920 × 1080) |
| Min. illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR |
| Digital Zoom | 16X |
| White Balance | Auto/Hauto/Manual/ATW/Indoor/Outdoor |
| AGC | Auto/Manual |
| DNR | 3D DNR |
| WDR | = 120 dB |
| Shutter Time | PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s |
| Day & Night | IR cut filter |
| Privacy Mask | 8 programmable privacy masks |
| Lens | |
| Focus Mode | Auto/Semiauto/Manual |
| Focal Length | 4.8 mm to 120 mm, 25 × Optical |
| Aperture Range | F 1.6 to F 3.5 |
| Angle of View | 57.6° to 2.5° (wide to tele) |
| Min. Working Distance | 10 mm to 1500 mm (wide to tele) |
| Zoom Speed | Approx. 3.2 s (optical, wide to tele) |
| Pan and Tilt | |
| Range | Pan:360° endless; Tilt:-15° to 90° (auto flip) |
| Speed | Pan manual speed: 0.1° to 80°/s Pan preset speed: 80°/s Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 256 |
| Patrol | 10 patrols, up to 32 presets per patrol |
| Pattern | 5 patterns, with the total recording time no less than 10 minutes |
| Power-off Memory | Support |
| Park Action | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None |
| PTZ Position Display | ON/OFF |
| Preset Freezing | Support |
| Scheduled Task | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None |
| Infrared | |
| IR Distance | Up to 100m |
| IR Intensity | Automatically adjusted depending on the zoom ratio |
| Input/Output | |
| Video Output | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
| RS-485 Interface | Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
| UTC function | UTC protocol (or HIKVISION-C protocol in previous DVR) |
| General | |
| Menu Language | English |
| Power | 12 VDC Max.20 W (IR: 7 W) |
| Working Temperature | -30° C to 65° C (-22° F to 149° F) |
| Working Humidity | 90% or less |
| Protection Level | IP66 standard (outdoor dome); TVS 4,000 V lightning protection, surge protection and voltage transient protection |

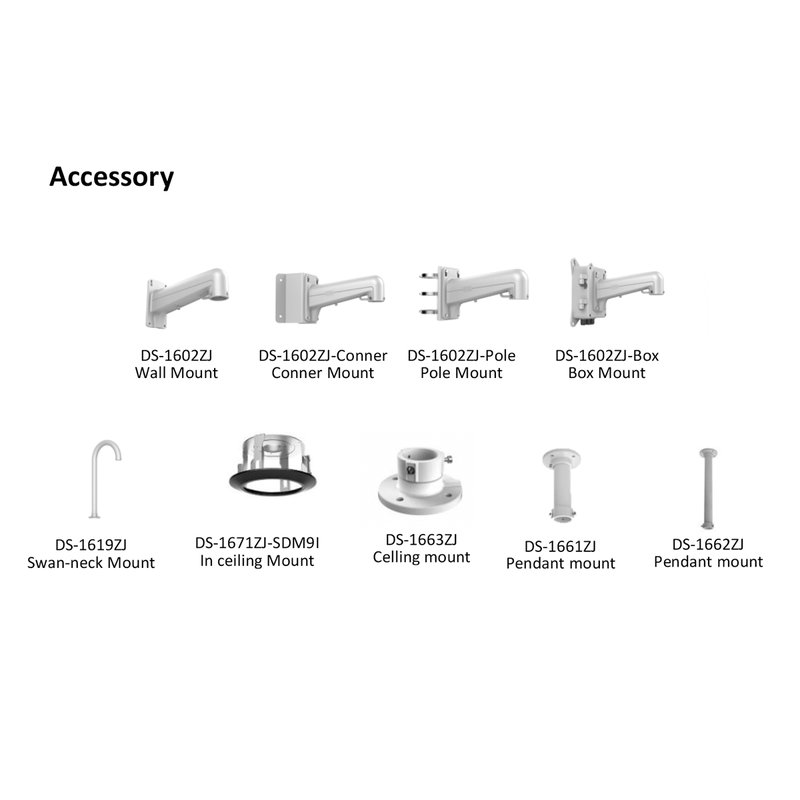

| Mounting | Various mounting modes optional |

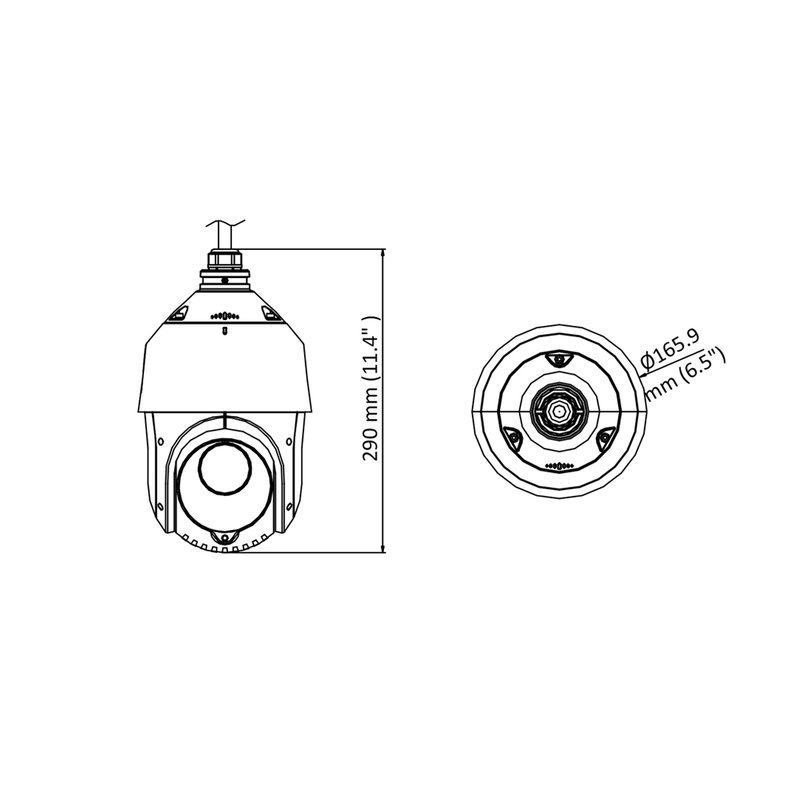

| Dimensions | Ø 165.9 mm × 290 mm (Ø 6.5" × 11.4") |
| Weight (approx.) | 2Kg (4.41Ib.) |
Prodotti Alternativi
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Specifiche Tecniche | |
|---|---|
| Brand | HIKVISION |
| Packaging | |
|---|---|
| Peso | 3,350.00 g |
| Volume | 18,876.00 cm³ |
| Lunghezza | 39.0 cm |
| Larghezza | 22.0 cm |
| Altezza | 22.0 cm |
