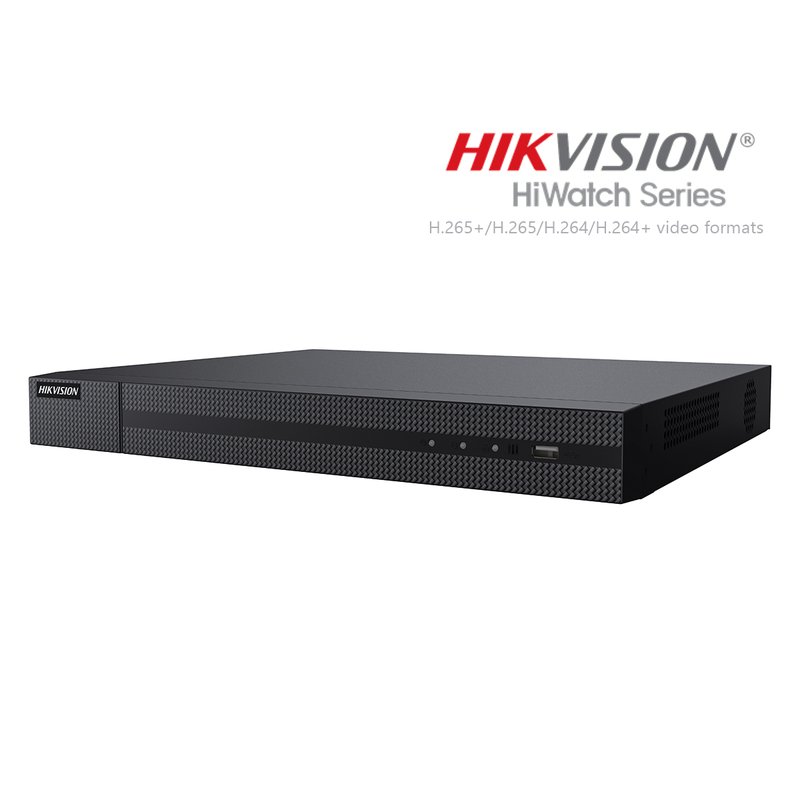

Videoregistratore NVR 4 Canali 4K HD 4CH@8Mpx H.265+ 80Mbps P2P ONVIF HiWatch HWN-4104MH
| Video/Audio input | |
| IP video input | 4-ch Up to 8 MP resolution |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 k O) |
| Network | |
| Incoming bandwidth | 40 Mbps |
| Outgoing bandwidth | 80 Mbps |
| Remote connection | 16 |
| Video/Audio output | |
| Recording resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| HDMI output resolution | 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output |
| VGA output resolution | 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output |
| Audio output | 1-ch, RCA (Linear, 1 KO) |
| Decoding | |
| Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 |
| Live view/Playback resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous playback | 4-ch |
| Decoding Capability | 1-ch @ 8 MP / 4-ch @ 1080p |
| Stream type | Video, Video & Audio |
| Network management | |
| Network protocols | IPv6, HTTPS, UPnP, NTP, SADP, SMTP, PPPoE, DDNS, iSCSI, NFS |
| Interoperability | ONVIF 2.2 |
| Camera protocol | HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO |
| Hard Disk | |
| SATA | 1 SATA interface |
| Hard Disk Capacity | Up to 6 TB capacity for each disk |

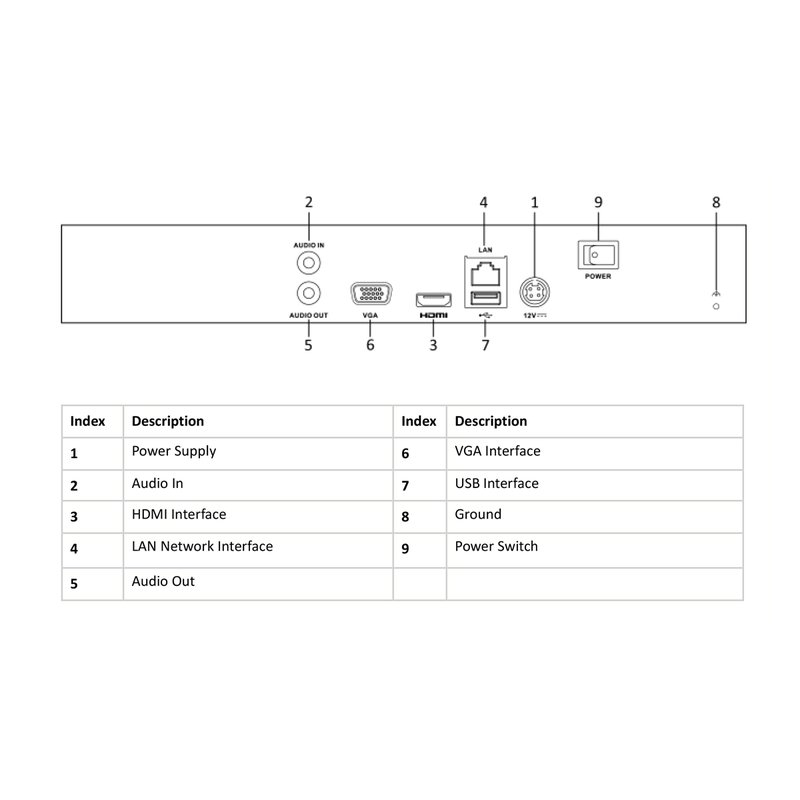

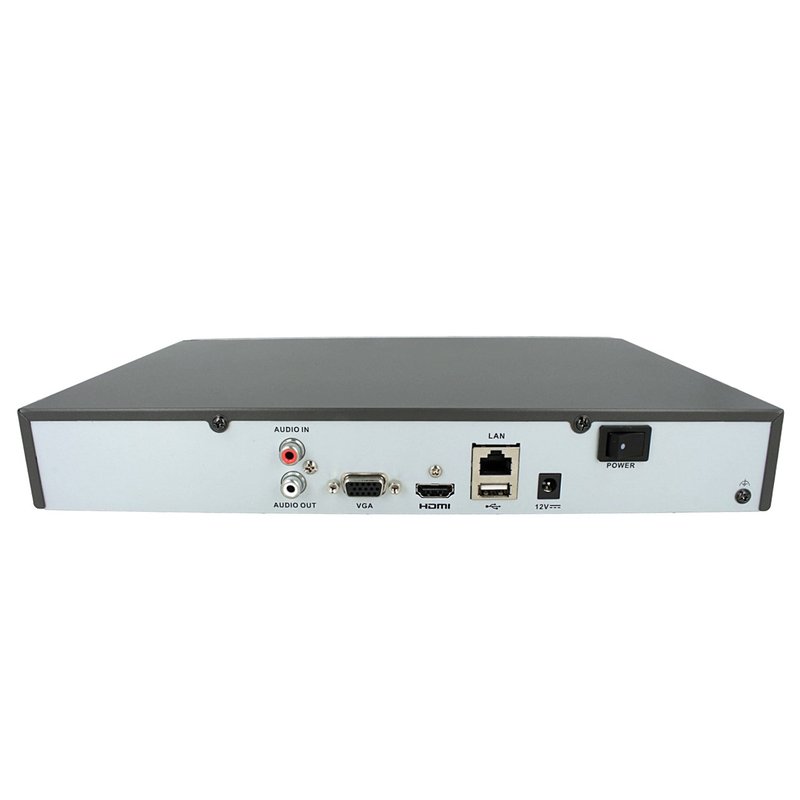

| External interface | |
| Network interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| USB interface | Rear Panel: 2 × USB 2.0 |
| General | |
| Power supply | 12 VDC, = 18 W |
| Consumption(without hard disk) | = 10 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimensions(W × D × H) | 260 × 223 × 48 mm (10.2" × 8.8" × 1.9") |
| Weight | = 1 kg (2.2 lb) |
| Certification | |
| CE | EN 55032:2015; EN 50130-4:2011+A1:2014; EN 61000-3-2:2014; EN 61000-3-3:2013 |
| FCC | FCC Part15 sub B; ANSI C63.4 |
Prodotti Alternativi
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Specifiche Tecniche | |
|---|---|
| Brand | HIKVISION |
| Packaging | |
|---|---|
| Peso | 1,920.00 g |
| Volume | 13,230.00 cm³ |
| Lunghezza | 49.0 cm |
| Larghezza | 30.0 cm |
| Altezza | 9.0 cm |
