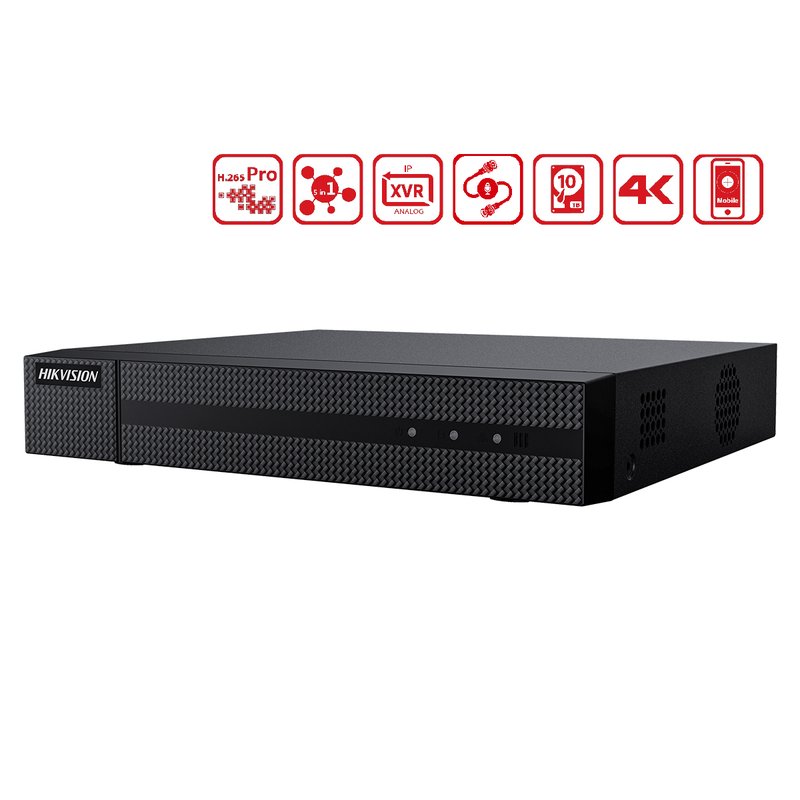

Videoregistratore DVR 16 Canali 5 In 1 HDTVI AHD CVI CVBS IP 16CH@4MP P2P Cloud H.265+ HiWatch HWD-6116MH-G2

https://www.a2zworld.com/web/image/product.template/45865/image_1920?unique=60113a1
Video/Audio input
Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog video input16-ch
HDTVI input4 MP, 1080p25, 1080p30, 720p25, 720p30
AHD input4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS inputSupport
IP video input8-ch (up to 24-ch)
Audio compressionG.711u
Audio input1-ch, RCA (2.0 Vp-p, 1 KO)
16-ch via coaxial cable
Video/Audio output
HDMI/VGA outputHDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolutionWhen 4 MP Lite mode not enabled: 4 MP/4 MP Lite/1080p/720p/WD1/4CIF/VGA/CIF;
When 4 MP Lite mode enabled: 4 MP lite/1080p lite/720p lite/WD1/4CIF/VGA/CIF
When 1080p Lite mode not enabled: 4 MP/1080p/720p/WD1/4CIF/VGA/CIF ;
When 1080p Lite mode enabled: 4 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF
Main stream Frame rateFor 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 4 MP Lite mode not enable: For 4 MP stream access: 4 MP@8fps; 4 MP lite/1080p/720p/WD1/4CIF/VGA/CIF@15fps (N)
When 4MP Lite mode enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode not enabled: For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled: For 1080p stream access:1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream Frame RateWD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate32 Kbps to 6 Mbps
Audio output1-ch, RCA (Linear, 1 KO)
Audio bit rate64 Kbps
Dual streamSupport
Stream typeVideo, Video & Audio
Synchronous playback16-ch
Network management
Remote connections128
Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA Interface1 SATA interface
Hard Disk CapacityUp to 10 TB capacity for each disk
External interface
Two-way audio input1-ch, RCA (2.0 Vp-p, 1 KO) (using the audio input)
Network interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB interfaceRear panel: 2 × USB 2.0
General
Power supply12 VDC
Consumption (without HDD)= 20 W
Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working humidity10% to 90%
Dimensions (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight (without HDD)= 1.2 kg (2.6 lb)

212.50 € 212.5 EUR 212.50 € VAT Excluded 312.50 €

125.00 € VAT Excluded 312.50 €

Not Available For Sale

  • Brand

This combination does not exist.

SKU: HWD-6116MH-G2
EAN: 6954273664275
Marca: HIKVISION
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Specifiche Tecniche
Brand HIKVISION
Packaging
Peso 1,550.00 g
Volume 8,960.00 cm³
Lunghezza 40.0 cm
Larghezza 28.0 cm
Altezza 8.0 cm
