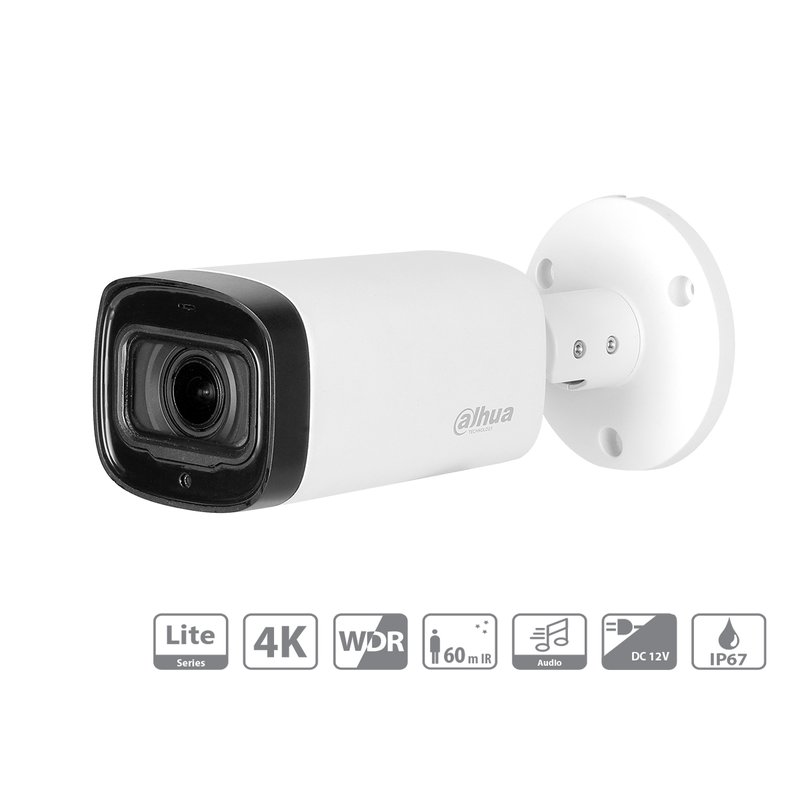

Telecamera Analogica Bullet 4K 8MP Ottica Varifocale 2.7-13.5mm Motorizzata IP67 12V DAHUA DH-HAC-HFW1801R-Z-IRE6

Camera

Image Sensor

1/2.7 inch CMOS

Effective Pixels

3840 (H)×2160 (V), 4K

Electronic Shutter Speed

PAL: 1/3s–1/100000s
NTSC: 1/4s–1/100000s

Minimum Illumination

0.03Lux/F1.7, 30IRE, 0Lux IR on

IR Distance

Distance up to 60m (196.85ft)

IR On/Off Control

Auto;manual

IR LED Number

4

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Mount Type

f14

Focal Length

2.7mm–13.5mm

Max. Aperture

F1.7

Angle of View

Horizontal: 105°–33°
Vertical: 56°–18°

Diagonal: 126°–38°

Iris Type

Fixed iris

Auto Focus

Yes

Close Focus Distance

0.8m (2.62ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

Wide-angle

90m (295ft)

36m (118ft)

18m (59ft)

9m (30ft)

Telephoto

264m (866ft)

106m (348ft)

53m (174ft)

26m (85ft)

Video

Video Frame Rate

CVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps
CVBS: PAL/NTSC
AHD: 4K@15fps; 5M@20fps; 4M@25fps/30fps
TVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps

Resolution

4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/WDR

WDR

120dB/WDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D&3D NR

Smart IR

Yes

Electronic Defog

Yes

Digital Zoom

4X

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Audio Port

One channel built-in mic (-A)

Video Port

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12V ±30% DC

Power Consumption

Max 11W (12V DC, IR on)

Environment

Operating Temperature

-30°C to +60°C (-22°F to 140°F);<95% (non-condensation)

Storage Temperature

-30°C to +60°C (-22°F to 140°F);<95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal throughout the whole casing

Dimensions

209.9mm×90.4mm×90.4mm (8.26"×3.56"×3.56")

Net Weight

0.55kg (1.21lb)

Gross Weight

0.7kg (1.54lb)
