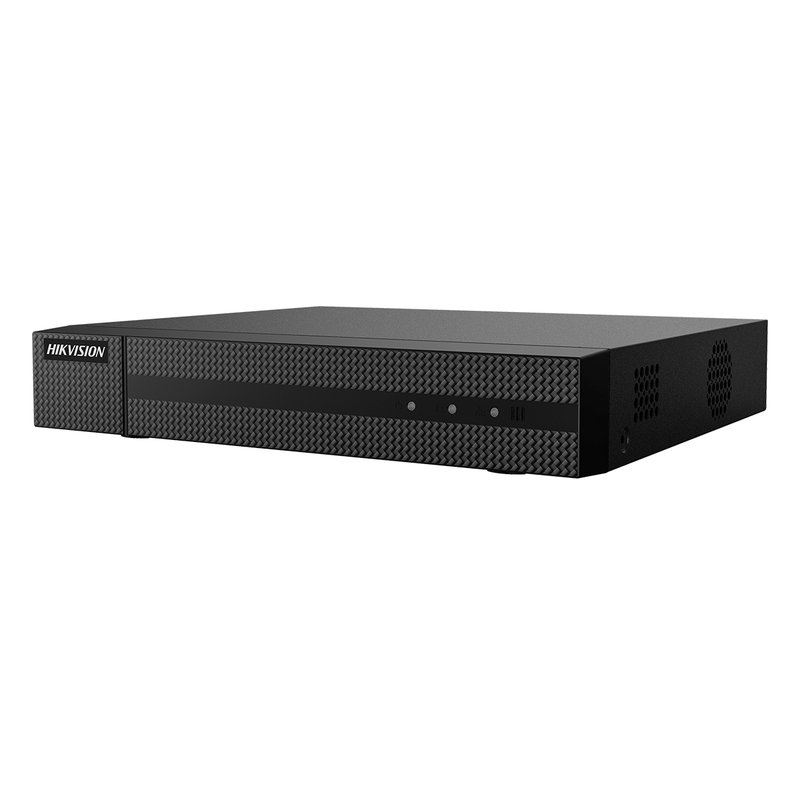

Videoregistratore DVR 4 Canali 5 In 1 HDTVI AHD CVI CVBS IP Turbo HD 4CH@2MP P2P Cloud H.264+/H.264 HiWatch HWD-5104M
| Video/Audio input | |
| Video compression | H.264+/H.264 |
| Analog video input | 4-ch |
| HDTVI input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS input | Support |
| IP video input | 1-ch (up to 5-ch) |
| Audio compression | G.711u |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 KO) 4-ch via coaxial cable |
| Video/Audio output | |
| HDMI/VGA output | 1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Encoding resolution | When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF |
| Main stream Frame rate | When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
| Sub-stream Frame Rate | 2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N) |
| Video bit rate | 32 Kbps to 4 Mbps |
| Audio output | 1-ch, RCA (Linear, 1 KO) |
| Audio bit rate | 64 Kbps |
| Dual stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 4-ch |
| Network management | |
| Remote connections | 32 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Hard disk | |
| SATA Interface | 1 SATA interface |
| Hard Disk Capacity | Up to 6 TB capacity for each disk |
| External interface | |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KO) |
| Network interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| USB interface | Rear panel: 2 × USB 2.0 |
| General | |
| Power supply | 12 VDC |
| Consumption (without HDD) | = 8 W |
| Working temperature | -10 ºC to +55 ºC (14 ºF to 131 ºF) |
| Working humidity | 10% to 90% |
| Dimensions (W × D × H) | 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
| Weight (without HDD) | = 0.8 kg (1.8 lb) |
